Question 1

Which two trace tools are available for Session Manager? (Choose two.)

Athe CallTrace command on the Session Manager Command Line Interface

Bthe traceSM command on the Session Manager Command Line Interface

CTrace Viewer in the System Manager GUI

Dthe List trace command on the Session Manager Command Line Interface

EPcap

Answer : B, C

Question 2

Which method can be used to verify the Client and TSAPI services have been administered correctly?

AThe TSAPI test is call initiated from CTI endpoints using SIP telephones.

BThe TSAPI test is call initialed from within Avaya Aura Communication Manager (CM) command line
using the test TSAPI interface command.

CThe TSAPI test is call initiated within the TSAPI web interface > TSAPI Monitoring Tool menu.

DThe TSAPI test is call initiated within the Utilities > Diagnostics > AE ServiceTSAPI Test menu.

Answer : D

https://downloads.avaya.com/css/P8/documents/101038591

Question 3

After upgrading Avaya Aura Application Enablement Services (AES), the customer's CTI application does not seem to be working.

Which two methods can be used to verify AES system status? (Choose two.)

AAccess the TSAPI web interface to monitor AES.

BAccess the AES command line, and run the status aesvcs cti-link command.

CAccess the AES web console, and view the services status in the AES menu.

DAccess Communication Manager (SAT), and run the statapp command to view AES services status.

EUsing Communication Manager's System Administration Terminal (SAT), run the status aesvcs ctilink command to see the service state.

Answer : C, E

Question 4

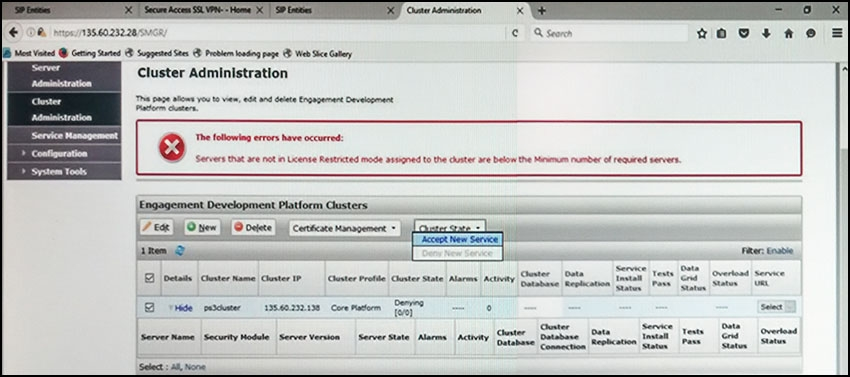

Refer to the exhibit.

In the Cluster Administration screen of a PresenceServices cluster, when you try to change the cluster state to Accept New Service, you receive the error:

Servers that are not in License Restricted mode assigned to the cluster are below the Minimum number of required servers.

You check that a server has been administered under Engagement Development Platform > Server Administration which shows green check under License Mode, and a System State of Denying.

Which action needs to be taken to solve this problem?

AEdit the Cluster, access the Servers tab, and assign the server to the cluster; then set the cluster to Accept New Service.

BUnder Engagement Development Platform > Server Administration, select the server and change the
System State to Accept New Service, then return to the Cluster Administration screen and set the cluster to Accept New Service.

CObtain and install an Avaya Breeze license on webLM with more instances of Avaya Breeze nodes.

DEdit the cluster to change the cluster profile from Core Platform to General Purpose.

Answer : B

Question 5

How can you enable all levels of the log, including debug, to be dumped into the ps.log file?

AWeb browse to Avaya Aura System Manager (SMGR), navigate to Services > Events > Logs > Log
Settings, then enter PresenceServices into the Logger filed, and enter ALL into Log Level.

BUse SSH to the PresenceServices Avaya Breeze node and execute the ce dlogon
PresenceServices command.

CUse SSH to the PresenceServices Avaya Breeze node and execute the edp dlogon all command.

DUse SSH to Avaya Aura System Manager (SMGR) and execute the edp dlogon all command.

Answer : A
