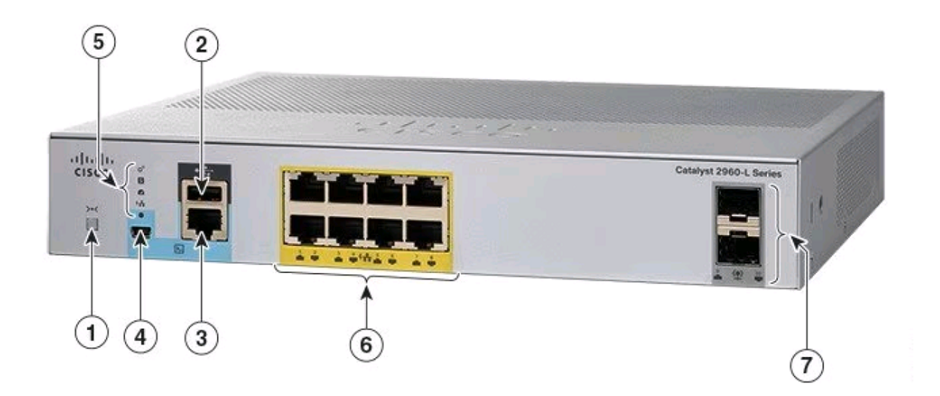

A Cisco PoE switch is shown in the following image. Which type of port will provide both data connectivity and power to an IP phone?
Answer : C
In the provided image of the Cisco PoE switch, the ports identified with number 6 are the standard RJ-45 Ethernet ports typically found on switches that provide both data connectivity and Power over Ethernet (PoE). PoE ports are designed to supply power to devices such as IP phones, wireless access points, and other PoE-enabled devices directly through the Ethernet cable.
Ports:
* 2: Console port (for management and configuration)
* 3 and 4: Specific function ports (often for management)
* 6: RJ-45 Ethernet ports (capable of providing PoE)
* 7: SFP ports (for fiber connections, typically do not provide PoE)
Thus, the correct answer is C. Ports identified with number 6.
* Cisco Catalyst 2960-L Series Switches Data Sheet
* Cisco PoE Overview
Which two statements are true about the IPv4 address of the default gateway configured on a host? (Choose 2.)
Note: You will receive partial credit for each correct selection.
Answer : B, D
* Statement B: 'The same default gateway IPv4 address is configured on each host on the local network.' This is true because all hosts on the same local network (subnet) use the same default gateway IP address to send packets destined for other networks.
* Statement D: 'The default gateway is the IPv4 address of the router interface connected to the same local network as the host.' This is true because the default gateway is the IP address of the router's interface that is directly connected to the local network.
* Statement A: 'The IPv4 address of the default gateway must be the first host address in the subnet.' This is not necessarily true. The default gateway can be any address within the subnet range.
* Statement C: 'The default gateway is the Loopback0 interface IPv4 address of the router connected to the same local network as the host.' This is not true; the default gateway is the IP address of the router's physical or logical interface connected to the local network.
* Statement E: 'Hosts learn the default gateway IPv4 address through router advertisement messages.' This is generally true for IPv6 with Router Advertisement (RA) messages, but not typically how IPv4 hosts learn the default gateway address.
* Cisco Default Gateway Configuration: Cisco Default Gateway
Which wireless security option uses a pre-shared key to authenticate clients?
Answer : A
WPA2-Personal, also known as WPA2-PSK (Pre-Shared Key), is the wireless security option that uses a pre-shared key to authenticate clients. This method is designed for home and small office networks and doesn't require an authentication server. Instead, every user on the network uses the same key or passphrase to connect1.
* What is a Wi-Fi Protected Access Pre-Shared Key (WPA-PSK)?
* Exploring WPA-PSK and WiFi Security
=========================
* WPA2-Personal: This wireless security option uses a pre-shared key (PSK) for authentication. Each client that connects to the network must use this key to gain access. It is designed for home and small office networks where simplicity and ease of use are important.
* WPA2-Enterprise: Unlike WPA2-Personal, WPA2-Enterprise uses 802.1x authentication with an authentication server (such as RADIUS) and does not rely on a pre-shared key.
* 802.1x: This is a network access control protocol for LANs, particularly wireless LANs. It provides an authentication mechanism to devices wishing to attach to a LAN or WLAN.
* 802.1q: This is a networking standard that supports VLAN tagging on Ethernet networks and is not related to wireless security.
* Cisco Documentation on WPA2 Security: Cisco WPA2
* Understanding Wireless Security: Wireless Security Guide
A Cisco switch is not accessible from the network. You need to view its running configuration.
Which out-of-band method can you use to access it?
Answer : B
Out-of-band (OOB) network interface configuration guidelines
Out of band management configuration
=========================
If you have any more questions or need further assistance, feel free to ask!

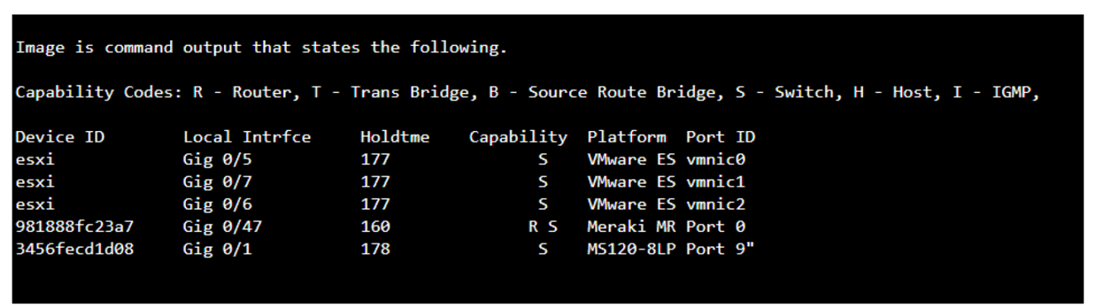

Which command will display the following output?
Answer : B
The command that will display the output provided, which includes capability codes, local interface details, device IDs, hold times, and platform port ID capabilities, is the show cdp neighbor command. This command is used in Cisco devices to display current information about neighboring devices detected by Cisco Discovery Protocol (CDP), which includes details such as the interface through which the neighbor is connected, the type of device, and the port ID of the device1.
* Cisco - show cdp neighbors
The provided output is from the Cisco Discovery Protocol (CDP) neighbor table. The show cdp neighbor command displays information about directly connected Cisco devices, including Device ID, Local Interface, Holdtime, Capability, Platform, and Port ID.
* A. show mac-address-table: Displays the MAC address table on the switch.
* C. show inventory: Displays information about the hardware inventory of the device.
* D. show ip interface: Displays IP interface status and configuration.
Thus, the correct answer is B. show cdp neighbor.
* Cisco CDP Neighbor Command
* Understanding CDP
