Which capability does the MPLS TE FRR facility backup protection method provide?
Answer : C
MPLS TE FRR (Fast ReRoute) provides backup protection by creating a bypass LSP for each protected LSP at each point of local repair. This method allows for rapid switching to the backup path in case of a failure, minimizing traffic loss and disruption.
Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials.
Which fact must a network engineer consider when planning to deploy RSVP-TE FRR?
Answer : C
RSVP-TE Fast Reroute (FRR) is a mechanism that provides protection switching for MPLS TE LSPs. The Point of Local Repair (PLR) will prefer to use a next-hop (NHOP) backup tunnel over a next-next-hop (NNHOP) backup tunnel when both are available. This preference is due to the fact that NHOP backup tunnels can provide faster rerouting around the failure point, minimizing traffic disruption and packet loss.
What is an enhancement that Cisco IOS XE Software has over Cisco IOS Software?
Answer : A
Cisco IOS XE Software is an open and flexible operating system optimized for a variety of network infrastructures. One of its key enhancements over Cisco IOS Software is the support for symmetric multiprocessing (SMP). This allows the operating system to efficiently utilize multiple CPU cores, improving performance and scalability for network services.
Refer to the exihibit.

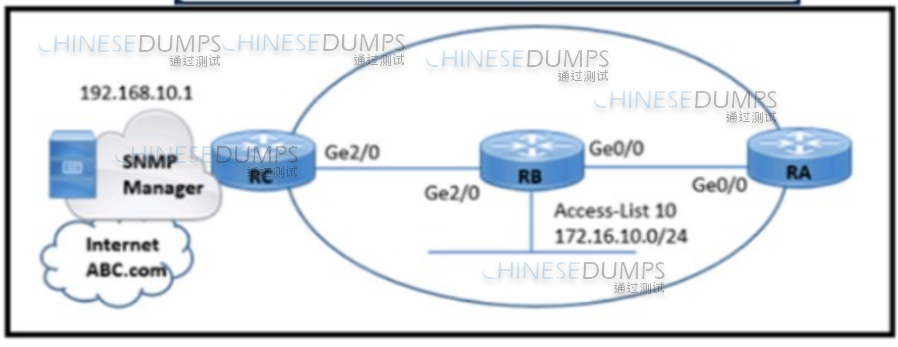

Refer to the exhibit. A network engineer is configuring an SNMP community on router RB with these requirements:
Allow read-only access for all objects to members of Access-List 10 that use the comaccess community string.
Other SNMP managers must not have access to objects.
SNMP authentication failure traps must be sent to SNMPv2c and then to the host using SNMPv2c with the public community string.

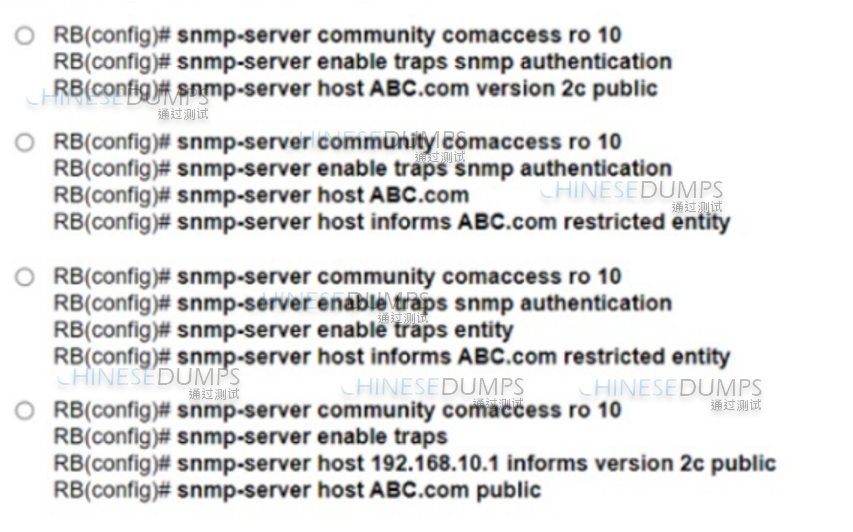

Which configuration meets these requirements?
Answer : B
Option B is the correct answer because it meets all the given requirements. The configuration ''snmp-server community comaccess ro 10'' allows read-only access for all objects to members of Access-List 10 that use the comaccess community string. The ''snmp-server host ABC.com informs version 2c public'' command ensures SNMP authentication failure traps are sent to SNMPv2c and then to the host using SNMPv2c with the public community string.
Refer to the exihibit.

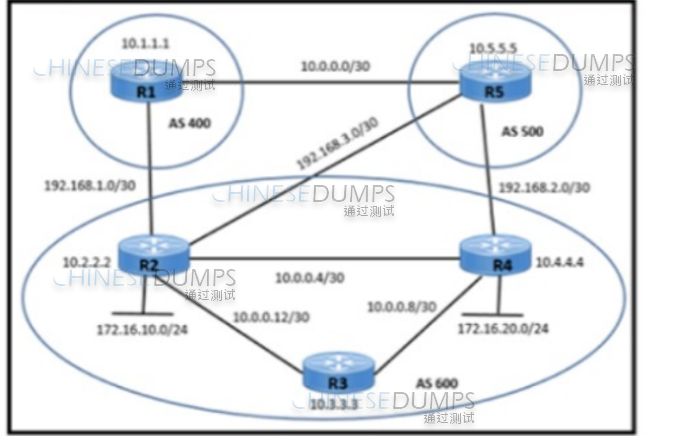

Refer to the exhibit. A network engineer is implementing iBGP and eBGP between AS 600 and AS 500 with these requirements:
R2 must establish eBGP peering on 192.168.3.0/30 with R5 for sending unicast and multicast traffic
R2 must wait for 30 seconds before sending BGP updates to R5 for multicast traffic.
Which action must be taken on R2 to meet the requirements?
