Question 1

Which command shows whether a LAG protocol is static or dynamic on a Dell EMC Networking OS10 switch?

Ashow lacp neighbor

Bshow running-configuration lacp

Cshow interface port-channel summary

Dshow port-channel summary

Answer : D

Question 2

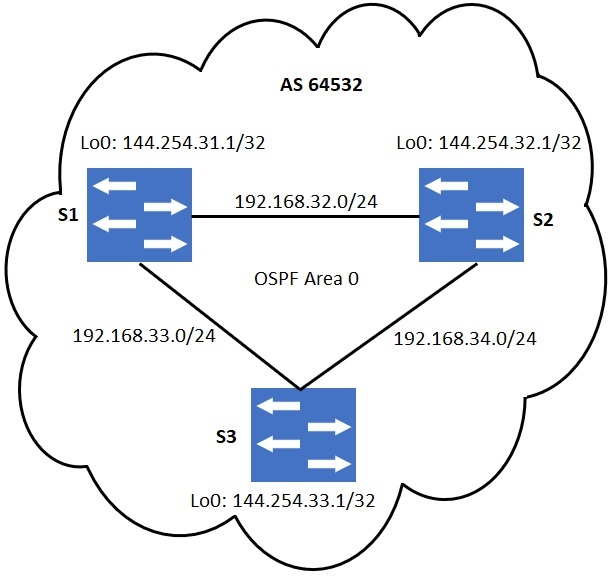

Refer to the exhibit.

No static routing has been configured. For iBGP loopback-based peering, which statement is correct?

AIt is not necessary for the routing table on S1 to have an entry for the loopback network of S3.

BS1 should have the Loopback network of S3 in its routing table for loopback-based peering.

CFor iBGP peering, physical interface addresses must be used.

DA static route on S1 to 144.254.32.1/32 will eliminate the need for loopback-based peering with S3.

Answer : B

Question 3

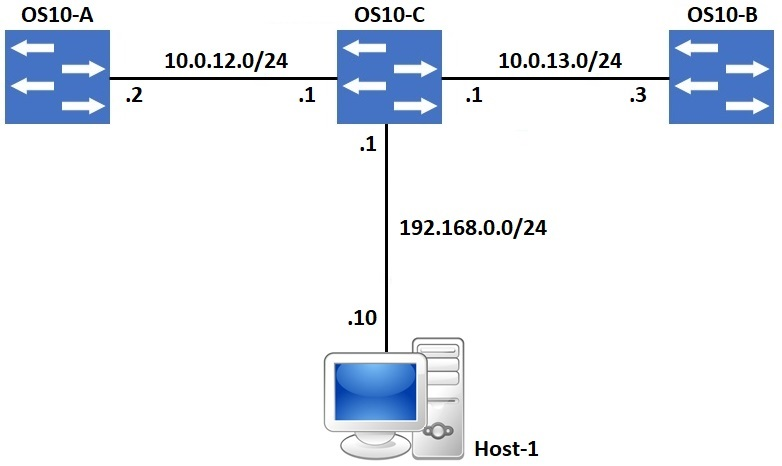

Refer to the exhibit.

A default route exists on OS10-C that points all internet traffic towards 10.0.13.3 on OS10-B. A network administrator needs to re-route internet traffic only sourced from Host-1 to 10.0.12.2 on OS10-A instead. What feature can the administrator implement to accomplish this goal?

AStatic Default Routing

BOSPF Cost Manipulation

CSource-Based Routing

DPolicy-Based Routing

Answer : D

Question 4

How are multiple hardware based ACLs filtered?

ANTP

BDHCP

CNPU

DIP

Answer : C

Question 5

What version of IGMP is required by PIM-SSM receivers?

AIGMP 1

BIGMP 3

CIGMP 2

DIGMP snooping
