Free HPE6-A84 Questions for HPE6-A84 Exam as PDF & Practice Test Software

Page:    1 / 14
Total 60 questions

Question 1

Refer to the scenario.

A customer has an Aruba ClearPass cluster. The customer has AOS-CX switches that implement 802.1X authentication to ClearPass Policy Manager (CPPM).

Switches are using local port-access policies.

The customer wants to start tunneling wired clients that pass user authentication only to an Aruba gateway cluster. The gateway cluster should assign these clients to the ''eth-internet" role. The gateway should also handle assigning clients to their VLAN, which is VLAN 20.

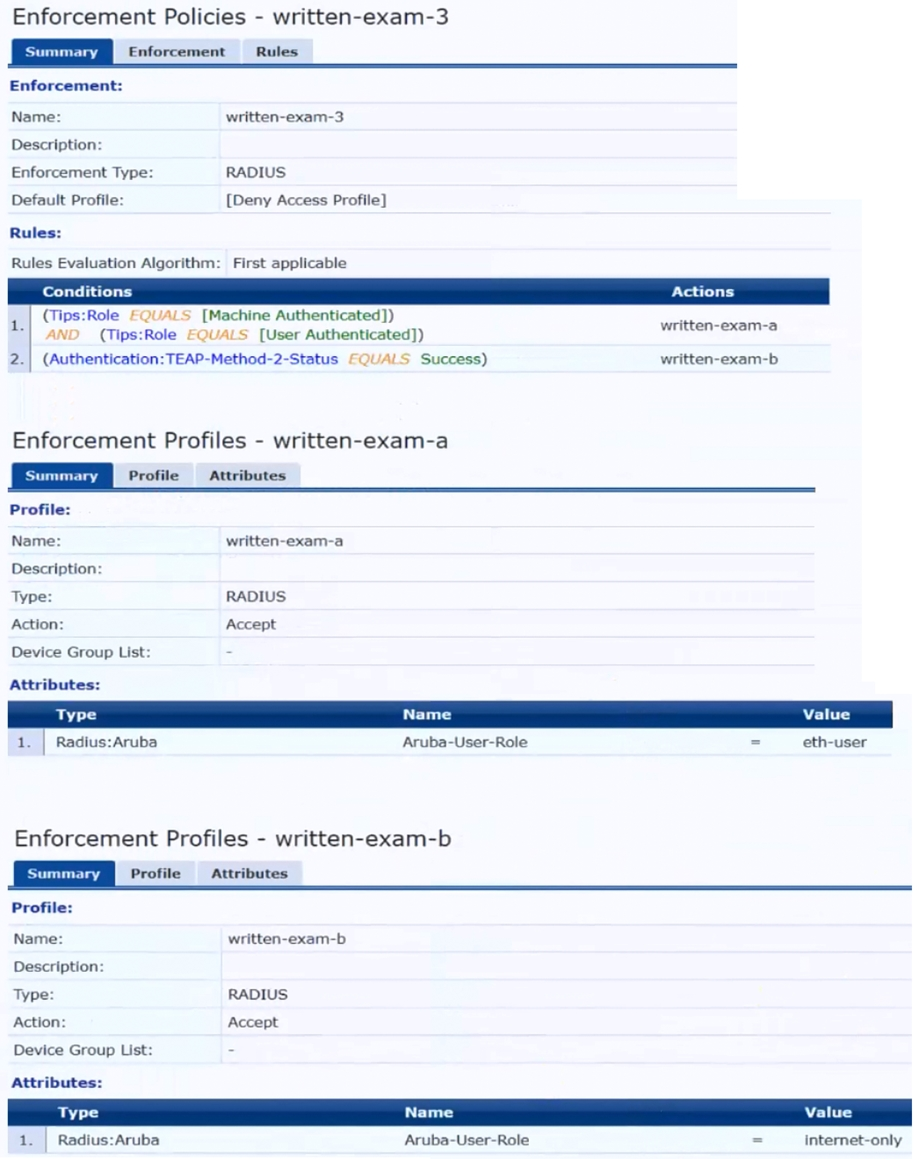

The plan for the enforcement policy and profiles is shown below:

The gateway cluster has two gateways with these IP addresses:

* Gateway 1

o VLAN 4085 (system IP) = 10.20.4.21

o VLAN 20 (users) = 10.20.20.1

o VLAN 4094 (WAN) = 198.51.100.14

* Gateway 2

o VLAN 4085 (system IP) = 10.20.4.22

o VLAN 20 (users) = 10.20.20.2

o VLAN 4094 (WAN) = 198.51.100.12

* VRRP on VLAN 20 = 10.20.20.254

The customer requires high availability for the tunnels between the switches and the gateway cluster. If one gateway falls, the other gateway should take over its tunnels. Also, the switch should be able to discover the gateway cluster regardless of whether one of the gateways is in the cluster.

Assume that you are using the ''myzone'' name for the UBT zone.

Which is a valid minimal configuration for the AOS-CX port-access roles?



Answer : B

The UBT solution requires that the edge ports on the switches are configured in VLAN trunk mode, not access mode. This is because the UBT solution uses a special VLAN (VLAN 4095 by default) to encapsulate the user traffic and tunnel it to the gateway. The edge ports need to allow this VLAN as well as any other VLANs that are used for management or control traffic.Therefore, the edge ports should be configured as VLAN trunk ports and allow the necessary VLANs1


1: Aruba Certified Network Technician (ACNT) | HPE Aruba Networking, section ''Get the Edge: An Introduction to Aruba Networking Solutions''

Question 2

Refer to the scenario.

A customer requires these rights for clients in the ''medical-mobile'' AOS firewall role on Aruba Mobility Controllers (MCs):

External devices should not be permitted to initiate sessions with ''medical-mobile'' clients, only send return traffic.

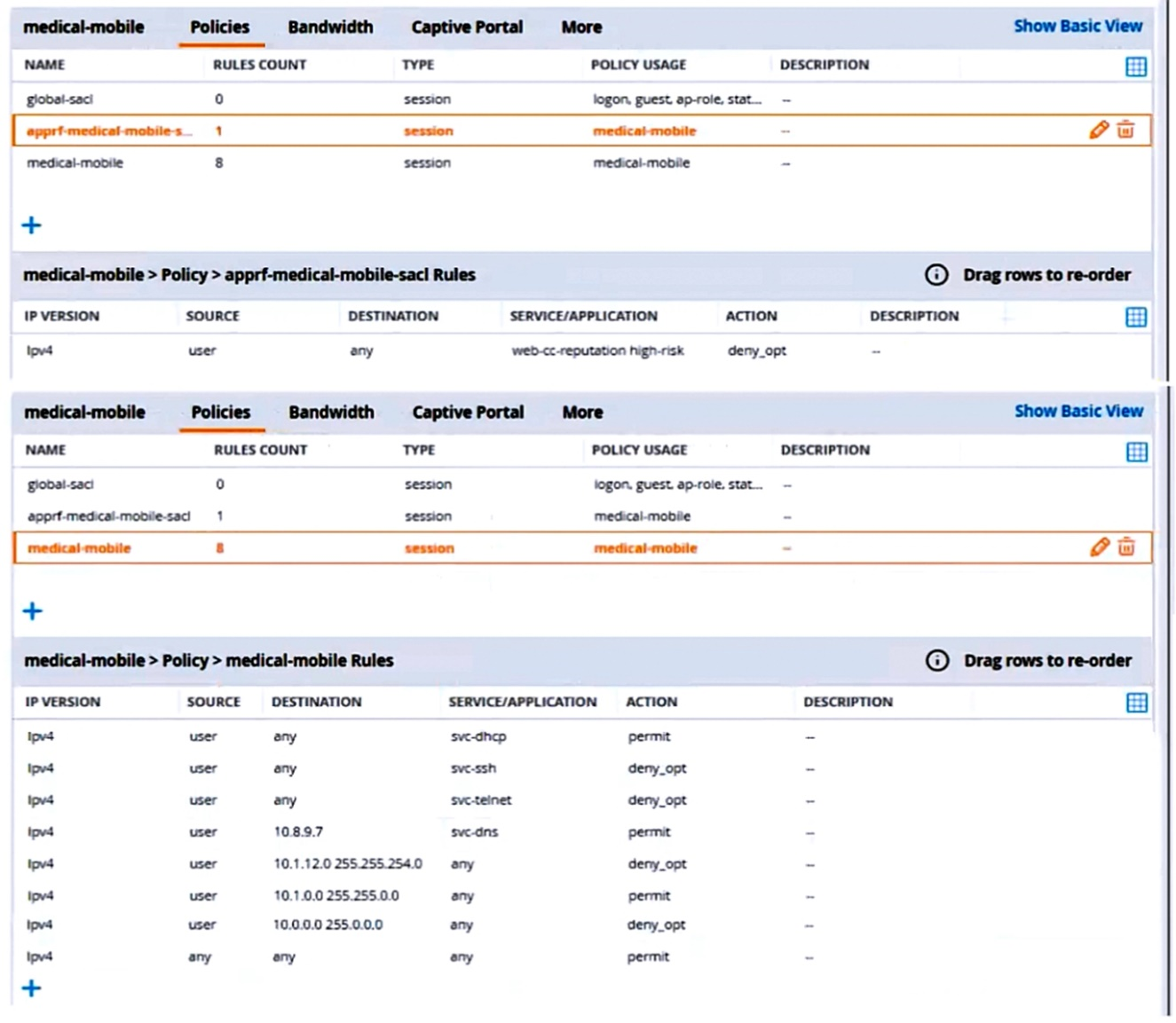

The line below shows the effective configuration for the role.

There are multiple issues with this configuration. What is one change you must make to meet the scenario requirements? (In the options, rules in a policy are referenced from top to bottom. For example, ''medical-mobile'' rule 1 is ''ipv4 any any svc-dhcp permit,'' and rule 6 is ''ipv4 any any any permit'.)



Answer : D

The scenario requires that the clients in the ''medical-mobile'' role are denied access to the 10.1.12.0/22 subnet, which is a range of IP addresses from 10.1.12.0 to 10.1.15.255. However, the current configuration in rule 5 has a subnet mask of 255.255.240.0, which means that it matches any IP address from 10.1.0.0 to 10.1.15.255. This is too broad and would deny access to other subnets in the 10.1.0.0/16 range that should be permitted according to the scenario.Therefore, the subnet mask in rule 5 should be changed to 255.255.252.0, which would match only the IP addresses from 10.1.12.0 to 10.1.15.255 and deny access to them as required by the scenario.1


1: Configuring Firewall Policies - Aruba, section ''Firewall Policies''

Question 3

A customer requires a secure solution for connecting remote users to the corporate main site. You are designing a client-to-site virtual private network (VPN) based on Aruba VIA and Aruba Mobility Controllers acting as VPN Concentrators (VPNCs). Remote users will first use the VIA client to contact the VPNCs and obtain connection settings.

The users should only be allowed to receive the settings if they are the customer's ''RemoteEmployees'' AD group. After receiving the settings, the VIA clients will automatically establish VPN connections, authenticating to CPPM with certificates.

What should you do to help ensure that only authorized users obtain VIA connection settings?



Answer : A

The VIA web authentication profile is used to authenticate the users who want to download the VIA connection settings from the VPNCs. The VPNCs can use either an internal database or an external server (such as RADIUS or LDAP) as the authentication source for this profile. To ensure that only authorized users obtain VIA connection settings, you should use CPPM as the external server and configure a service on CPPM that uses AD as the authentication source.This way, you can leverage the role mapping and enforcement features of CPPM to check if the users belong to the ''RemoteEmployees'' AD group and grant or deny them access accordingly1

The other options are not correct because they do not allow you to verify the users' AD group membership before providing them with VIA connection settings. Option B would only check the users' credentials against AD, but not their group membership. Option C would only apply to the VPN connection phase, not the VIA connection settings phase.Option D would not work because the VPNCs do not support LDAP as an authentication source for VIA connection profiles2


1: Configuring the VIA Controller - Aruba, section ''Configuring VIA Web Authentication Profile''2: Configuring VIA Connection Profile - Aruba, section ''Configuring Authentication Profile''

Question 4

Refer to the scenario.

A customer is migrating from on-prem AD to Azure AD as its sole domain solution. The customer also manages both wired and wireless devices with Microsoft Endpoint Manager (Intune).

The customer wants to improve security for the network edge. You are helping the customer design a ClearPass deployment for this purpose. Aruba network devices will authenticate wireless and wired clients to an Aruba ClearPass Policy Manager (CPPM) cluster (which uses version 6.10).

The customer has several requirements for authentication. The clients should only pass EAP-TLS authentication if a query to Azure AD shows that they have accounts in Azure AD. To further refine the clients' privileges, ClearPass also should use information collected by Intune to make access control decisions.

The customer wants you to configure CPPM to collect information from Intune on demand during the authentication process.

What should you tell the Intune admins about the certificates issued to clients?



Answer : B

To configure CPPM to collect information from Intune on demand during the authentication process, you need to use the Intune extension for ClearPass. This extension allows ClearPass to query Intune for device compliance and configuration information using the Intune API.To use this extension, you need to register an app in Azure AD and grant it the required permissions to access Intune1

The Intune extension uses the device ID as the key to query Intune for device information. The device ID is a unique identifier that is assigned by Intune to each enrolled device. The device ID can be obtained from the client certificate that is used for EAP-TLS authentication.Therefore, the certificates issued to clients must include the Intune ID in the subject name, so that ClearPass can extract it and use it to query Intune2

The certificates issued to clients do not need to be issued by a well-known, trusted CA, as long as ClearPass trusts the CA that issued them. The certificates do not need to include the client MAC address in the subject name, as this is not relevant for querying Intune. The certificates do not need to be issued by a ClearPass Onboard CA, as this is not a requirement for using the Intune extension.


1: ClearPass Extensions - Microsoft Intune Integration - Aruba, section ''Configuring Microsoft Extension in ClearPass''2: ClearPass Extensions - Microsoft Intune Integration - Aruba, section ''Configuring EAP-TLS Authentication''

Question 5

Refer to the scenario.

A customer is migrating from on-prem AD to Azure AD as its sole domain solution. The customer also manages both wired and wireless devices with Microsoft Endpoint Manager (Intune).

The customer wants to improve security for the network edge. You are helping the customer design a ClearPass deployment for this purpose. Aruba network devices will authenticate wireless and wired clients to an Aruba ClearPass Policy Manager (CPPM) cluster (which uses version 6.10).

The customer has several requirements for authentication. The clients should only pass EAP-TLS authentication if a query to Azure AD shows that they have accounts in Azure AD. To further refine the clients' privileges, ClearPass also should use information collected by Intune to make access control decisions.

You are planning to use Azure AD as the authentication source in 802.1X services.

What should you make sure that the customer understands is required?



Answer : A

To use Azure AD as the authentication source in 802.1X services, you need to configure CPPM as a SAML service provider and Azure AD as a SAML identity provider. This allows CPPM to use Azure AD for user authentication and role mapping. To do this, you need to create an app registration on Azure AD that references the CPPM's FQDN as the reply URL and the entity ID.You also need to grant the app registration the required permissions to access user information from Azure AD1


Page:    1 / 14
Total 60 questions
