Question 1

You want to implement a system in your network to simplify VLAN management that can also dynamically create and prune VLANs. How would you accomplish this task?

AEnable GVRP on access interfaces.

BEnable MVRP and GVRP on all interfaces.

CEnable MVRP on trunk interfaces.

DEnable MVRP on access interfaces.

Answer : C

Question 2

You are configuring CoS throughout your enterprise network using DSCP. You have configured MF classification on your edge devices and are using BA classifiers throughout the core You are using the EZQoS template provided on your EX Series switches that are acting as your edge devices. You have loaded the configuration group and applied it to the appropriate interfaces. Classification and scheduling are working properly on your edge devices; however, traffic is not being classified correctly when it reaches your core devices

In this scenario, which statement is correct about solving this problem?

AYou should configure and apply a policer to the edge devices' egress interfaces toward the core.

BYou must configure the core devices using the EZQoS template as well

CYou should configure and apply rewrite rules on the edge devices' egress interfaces toward the core

DYou must configure the edge devices to use BA classifiers instead of MF classifiers

Answer : C

Question 3

Which two statements are correct about OSPFv2 and OSPFv3? (Choose two.)

AOSPFv2 carries prefix information in LSAs

BOSPFv3 is processed per subnet.

COSPFv2 and OSPFv3 require an Area 0.

DOSPFv3 carries flooding scope in LSAs.

Answer : A, D

Question 4

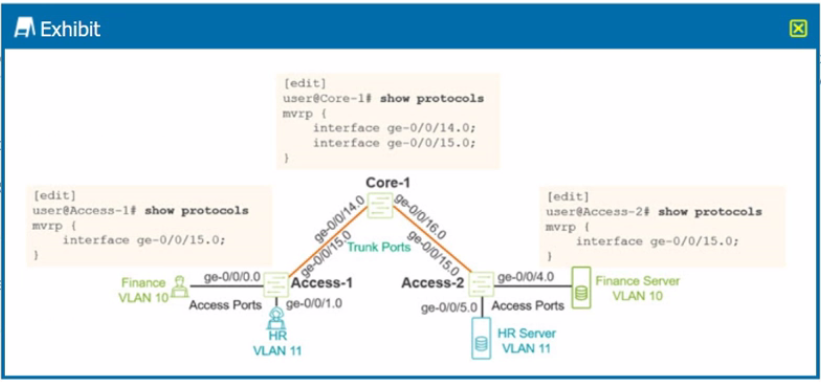

Exhibit

You configured MVRP in your Layer 2 network using the configuration shown in the exhibit. You verified that the appropnate VLANs are configured and applied on the two access switches. You are using RSTP as your loop prevention mechanism. Unfortunately, the users are not able to communicate with their corresponding server attached to the Access-2 switch.

In this scenario, what should you do to solve this problem?

AConfigure VSTP instead of RSTP as your loop-prevention mechanism.

BConfigure the access interfaces on the Access-2 switch under MVRP.

CConfigure the ge-070716.0 interface on the Core-1 switch under MVRP.

DConfigure the access interfaces on the Access-1 switch under MVRP.

Answer : B

Question 5

An incorrectly configured routing policy at your service provider led to several hundred thousand routes being placed in your edge router's routing table In this scenario, how would you limit the number of prefixes received on a BGP peer session?

AEnable the damping BGP parameter in the edge router configuration

BEnable the prefix-limit BGP parameter in the edge router configuration.

CEnable the graceful-restart BGP parameter in the edge router configuration.

DEnable the advertise-inactive BGP parameter in the edge router configuration.
