Click the exhibit.

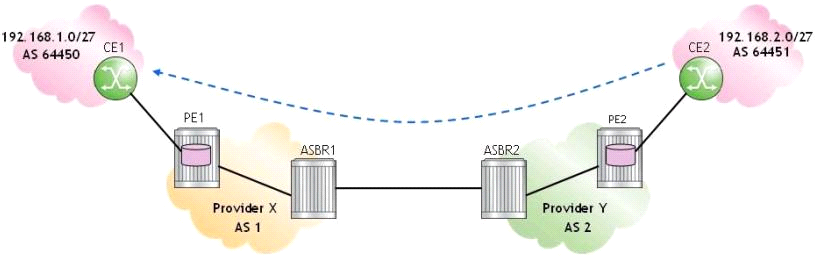

For the inter-AS model B VPRN, which of the following is TRUE when CE2 sends an IP packet to 192.168.1.1?

APE2 pushes one label on the IP packet and forwards it to ASBR2.

BASBR2 sends the IP packet with one label to ASBR1.

CASBR1 sends the IP packet with one label to PEL

DPE1 pops one label off the IP packet and forwards it to CE1.

Answer : B

Click the exhibit.

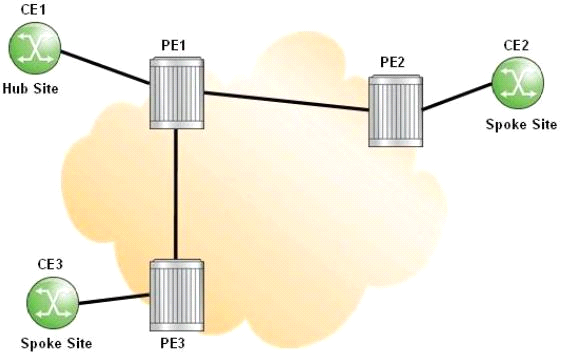

For the CE hub and spoke VPRN, which of the following is FALSE?

AThe primary VRF on PE1 contains routes learned from spoke sites.

BAll traffic between spoke sites must pass through CE1.

CThe secondary VRF on PE1 is used to route data packets from the hub CE to the spoke sites.

DPE1 advertises the primary VRF routes to CE1.

Answer : C

Which of the following is NOT a requirement for eiBGP load balancing to be effective?

AThe route distinguisher of the VPRN on the local PE must be different from the route distinguisher of the remote PEs.

Becmp must be configured within the VPRN instance.

Ceibgp-loadbalance must be configured within the VPRN instance.

Dibgp-multipath must be configured within the VPRN instance.

Answer : A

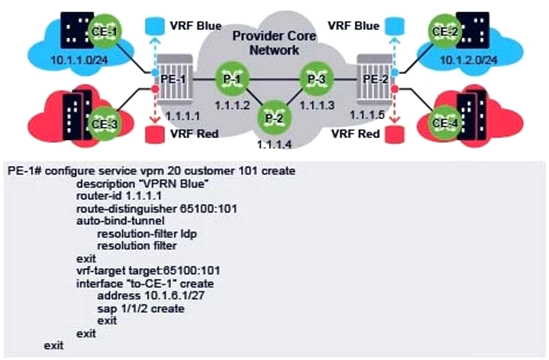

What is wrong with the VPRN configuration applied on this Nokia 7750 SR?

AThe VPRN ID must match the value 101 used in the vrf-target command.

BThe VPRN ID must match the value 101 used in the route-distinguisher command.

CThe router-id command should not be used in this context.

DThe ''no shutdown'' command must be configured for the VPRN to be operationally UP.

Answer : C

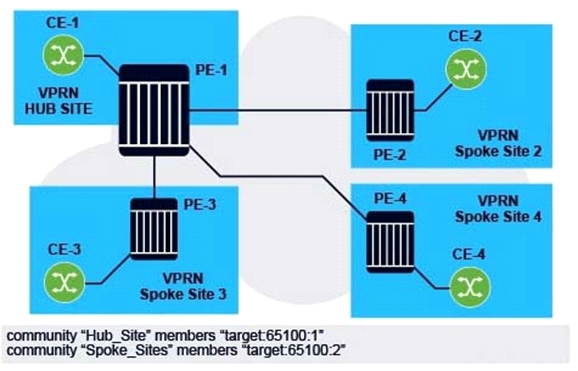

Community lists are configured for the PE hub and spoke VPRN.

Which communities should be imported by the VPRN service on PE1?

A''Spoke_Sites''

B''Hub_Site''

C''Spoke_Sites'' and ''Hub_Site''

DNo communities should be imported.

Answer : A

Free Practice Questions for Nokia 4A0-106 Exam
