Question 1

Which of the following parameters is taken into account FIRST when a CFHP arbiter allocates bandwidth among its children policers?

APIR

BCIR

CLevel

DWeight

Answer : D

Question 2

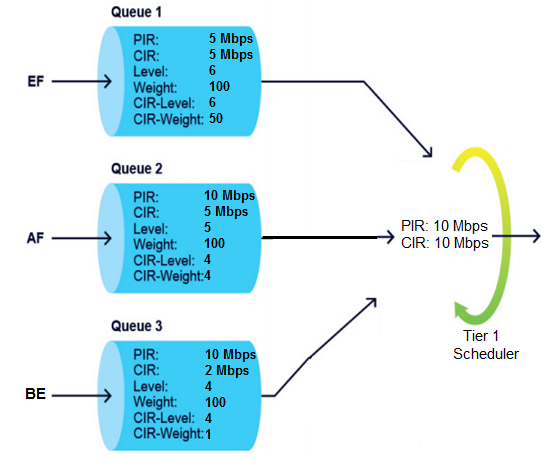

Refer to the exhibit.

Given the scheduler-policy parameters shown, and assuming the offered rate of each queue is 10 Mbps, what are the operational PIR and CIR for queue 3?

APIR = 4 Mbps, CIR = 1 Mbps

BPIR = 1 Mbps, CIR = 1 Mbps

CPIR = 10 Mbps, CIR = 1 Mbps

DPIR = 5 Mbps, CIR = 1.25 Mbps

EPIR = 1.25 Mbps, CIR = 1.25 Mbps

Answer : C

Question 3

Which of the following self-generated traffic applications is considered ''protocol'' traffic, as opposed to ''management'' traffic?

ABGP

BTelnet

CICMP

DSNMP

Answer : A

Question 4

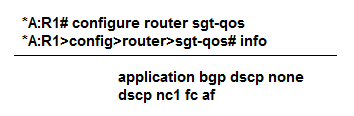

Refer to the exhibit.

According to the configuration shown above, which of the following about the classification and marking of self- generated BGP traffic is TRUE?

AIt will be marked as DSCP BE and classified into forwarding class BE.

BIt will be marked as DSCP NC1 and classified into forwarding class BE.

CIt will be marked as DSCP NC1 and classified into forwarding class NC.

DIt will be marked as DSCP NC1 and classified into forwarding class AF.

Answer : D

Question 5

Which of the following CANNOT be used as external marking bits?

AIP Precedence

BDot1p

CForwarding class

DEXP
