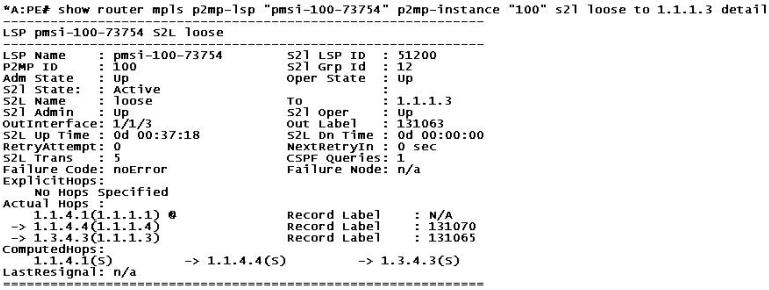

Click the exhibit.

Based on the output displayed, which of the following is FALSE?

AFast-reroute one-to-one is enabled in this P2MP LSP-template.

BThis P2MP LSP is established for VPRN 100.

CRouter 1.1.1.1 is a PE participating in VPRN 100.

DRouter 1.1.1.3 is a PE participating in VPRN 100.

Answer : A

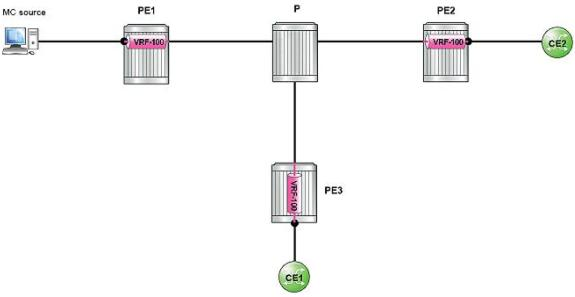

Click the exhibit.

VPRN 100 is an MVPN with RSVP-TE P2MP LSP P-tunnels. How many PATH messages are signaled by PE1 for I-PMSI?

DIt depends on the number of receivers

Answer : B

Which MAC address does the IPv4 multicast address 239.33.42.107 translate to?

A01-00-5e-al-2a-6b

B01-00-5e-21-2a-6b

C01-00-5e-21-2c-6c

D00-01-5e-al-2a-6b

E00-01-5e-21-2a-6b

F00-01-5e-al-2a-6b

Answer : B

Which of the following are characteristics of the one-to-many model of multicast data delivery? (Choose two)

AReceivers are generally unknown by the source.

BReceivers are generally known by each other.

CIt is well suited for applications in which the receivers provide feedback to each other and the source.

DThere is a single data flow for each group on the source segment.

EAll devices are potentially capable of generating multicast data.

FIt is well suited for applications such as video on demand, where each source sends a separate data stream to each of the many different receivers.

Answer : A, D

Which of the following regarding the BSR and the RP is TRUE?

AA router cannot be configured as a BSR-candidate and a static RP at the same time.

BA router cannot be a candidate-RP and a BSR-candidate at the same time.

CThere is only one active RP in a multicast routing domain at any time.

DThere is only one elected BSR in a multicast routing domain at any time.

Answer : D
