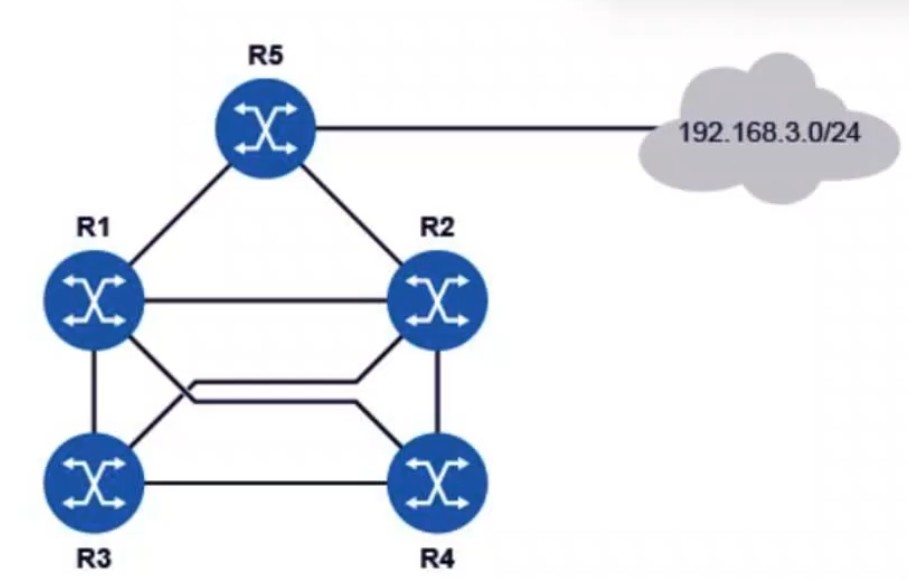

Refer to the exhibit.
All routers in the diagram are running an interior gateway protocol (IGP) and have been configured with an ECMP value of 4. Router R5 advertises the prefix 192.168.3.0/24 using the IGP. Assuming all links have the same cost, how many entries for prefix 192.168.3.0/24 will be in router R3's routing table?
Answer : D
In this scenario, the routers are configured with an Equal-Cost Multi-Path (ECMP) value of 4, meaning they can utilize up to 4 equal-cost paths to reach a destination. Since Router R5 is advertising the 192.168.3.0/24 prefix and all links have the same cost, router R3 will receive multiple routes to reach this destination.
Given that all the routers (R1, R2, R3, R4, and R5) are connected in a way that can support multiple equal-cost paths, and assuming ECMP is set to 4, the routing table on Router R3 will have up to 4 entries for the prefix 192.168.3.0/24.
Thus, Router R3's routing table will contain 4 entries for the prefix 192.168.3.0/24.
Which component of the Nokia 7750 SR is in charge of performing the longest prefix match lookup on packets that arrive on the physical interfaces?
Answer : D
The Input/Output Module (IOM) is responsible for performing the longest prefix match (LPM) lookup on packets that arrive at the physical interfaces. The IOM performs this function by examining the destination IP address of incoming packets and using the routing table to determine the best match.
What is the replacement for ARP in IPv6?
Answer : C
In IPv6, the Neighbor Discovery Protocol (NDP) replaces the Address Resolution Protocol (ARP) used in IPv4. NDP is responsible for several functions, including resolving IP addresses to MAC addresses (similar to ARP), detecting duplicate IP addresses, and discovering other devices on the network.
Which of the following definitions best describes route redistribution?
Answer : C
Route redistribution is the process of sharing routing information between different routing protocols or routing domains. For example, a router might redistribute routes learned via OSPF into a BGP routing table or vice versa. This enables routers to exchange routing information even when they are using different routing protocols.
Which of the following is NOT a function of the control plane a router?
Answer : D
The data plane (or forwarding plane) is responsible for actually forwarding the data packets. It uses the information stored in the forwarding table to determine how to move packets from one interface to another toward their destination.
